Solver Modes - Reflection Advection

Reflection advection solver mode is based on the paper titled An Advection-Reflection Solver for Detail-Preserving Fluid Simulation presented at Siggraph 2018. You can find the link to the paper here.

What it does is conserve energy lost when you perform the project-non-divergent step on the velocity field. The technique achieves this by advecting and projecting velocity two times with a corrective step in the middle that helps conserve some of the lost energy.

You can enable this solver mode by going to the Solver -> Settings -> Solver Mode drop down menu on the solver HDA and selecting “Reflective“.

Solver setting tab.

Solver setting tab.

Below you can see some examples of reflection advection versus traditional advection below.

Two plumes colliding. As you can see, energy and detail is better preserved in the reflection version.

Two plumes colliding. As you can see, energy and detail is better preserved in the reflection version.

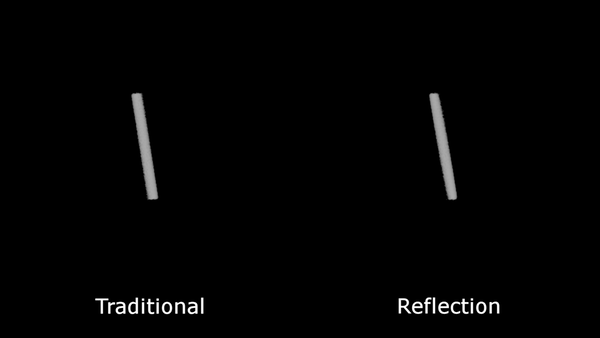

Here you can see the strong outwards force of the spinning emitter is conserved. You can also feel that the swirling motion in the fluid is much more aparent.

Here you can see the strong outwards force of the spinning emitter is conserved. You can also feel that the swirling motion in the fluid is much more aparent.
